Wire Thread Insert Fastener Manufacturer Custom Size Metric Thread Oil Inserts

Name: Wire Thread Insert Fastener Manufacturer Custom Size Metric Thread Oil Inserts
Brand: AVIC-Flight
Price: 1 USD

China Wire Thread Insert Fastener Manufacturer Custom Size Metric Thread Oil Inserts wholesale

Brand Name : AVIC-Flight

Model Number : M2-M20

Certification : ISO9001：2015，ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 50000pcs/day

Delivery Time : 15 days

Packaging Details : 1000pcs/bag

Specifications : ISO9001:2005

Surface treatment : True Colours

Product namee : thread insert

Standard : ISO,GB,DIN,ANSI,BS,JIS

Free Sample : Free samples with freight collect.

Customized : OEM ODM

Contact Now

Wire Thread Insert Fastener Manufacturer Custom Size Metric Thread Oil Inserts

Information

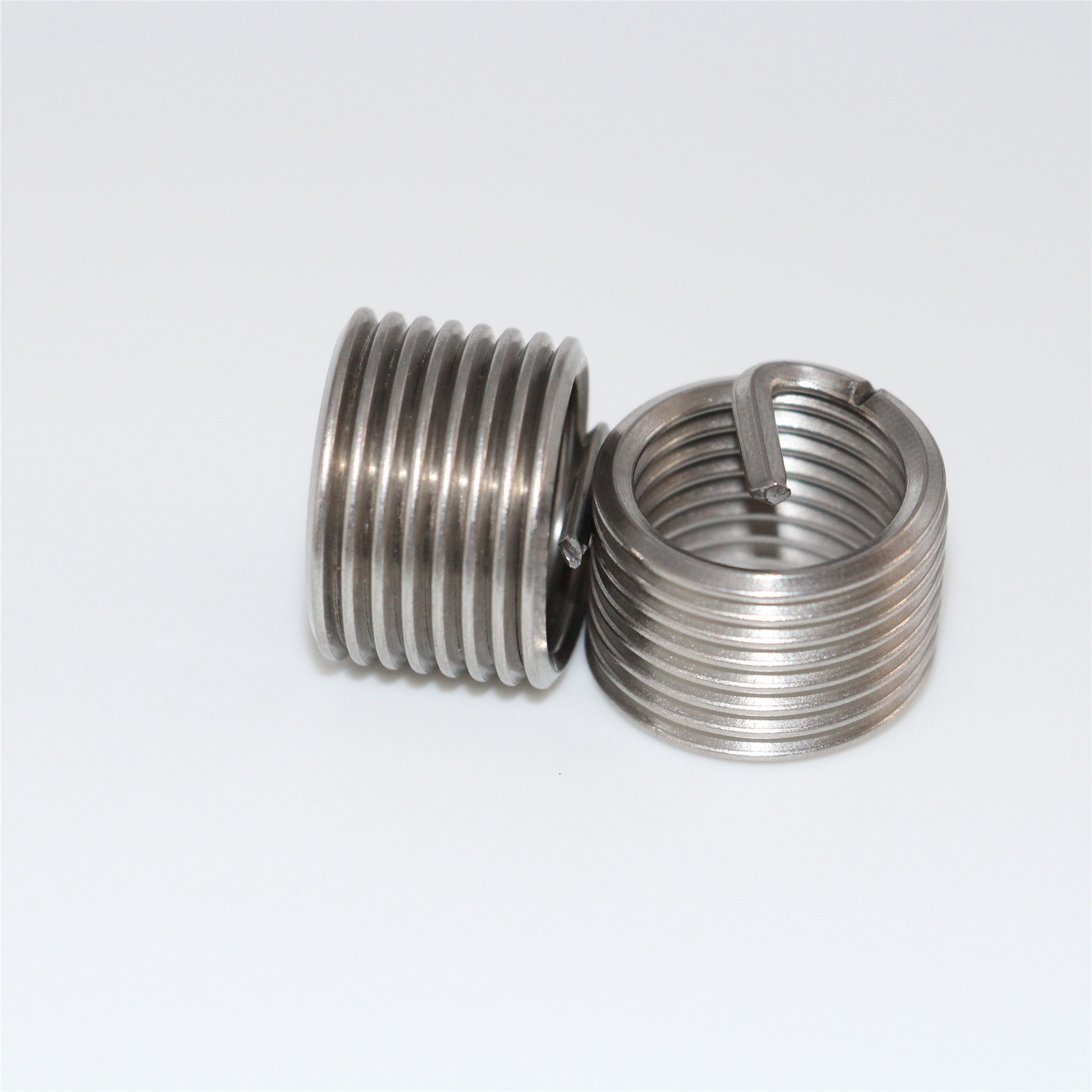

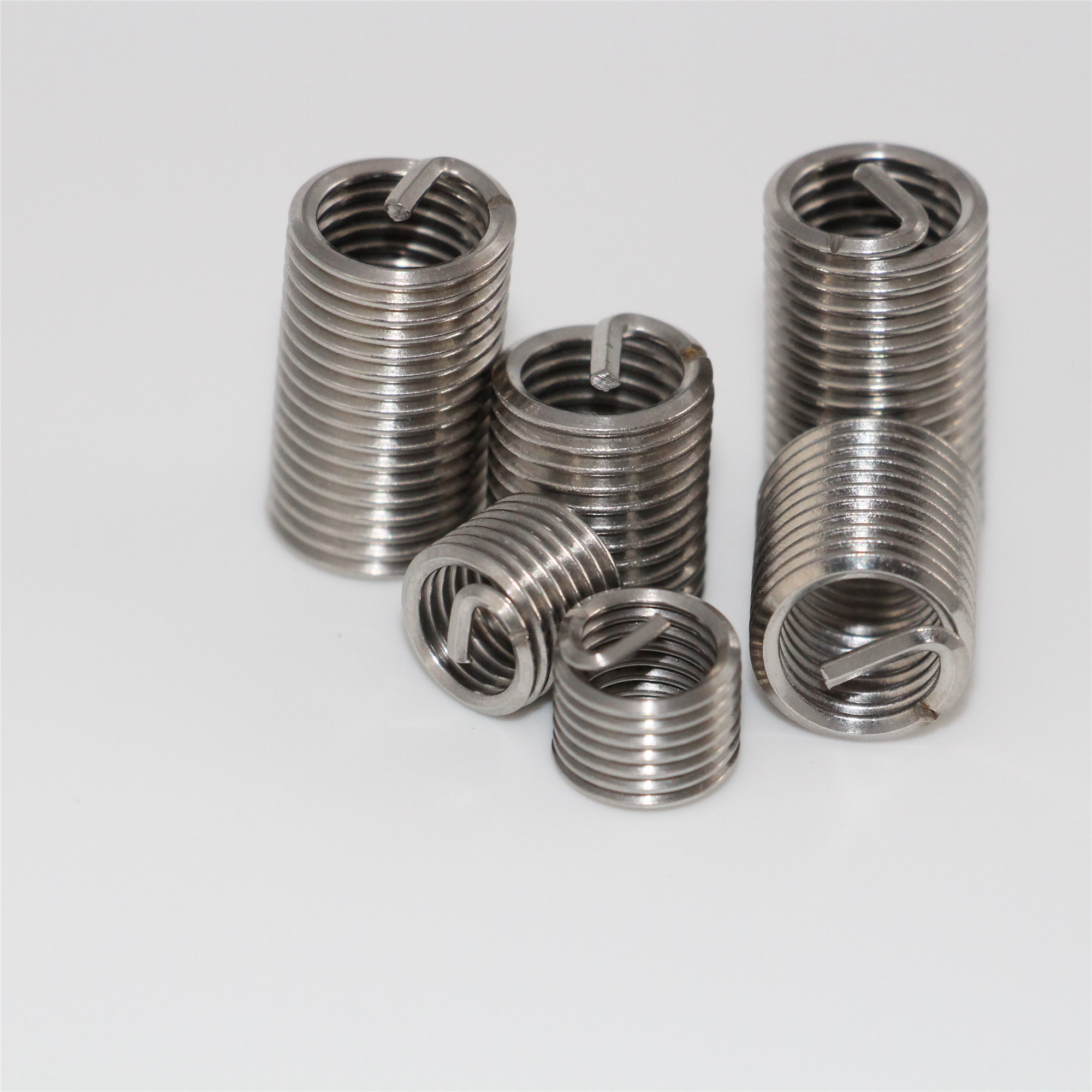

1. Wire thread insert is a fastener element that is inserted into an object to add a threaded hole.
2. It is made of high strength,precision,corrosion resistant and diamond wire.
3. It can enhance the connection strength and abrasion resistant,especially in Al,MG,Cast Iron and other low strength materials.

Materials	Brass,Stainless Steel,Carbon steel1215,Other materials
Finish	Zn/Ni/Tin/Au plating,Black Oxide,Anodizing,Passivated and so on.
Type	Wire thread insert/Keylocking threaded insert/Solid threaded insert
Thread	Internal thread A:as per ISO6H 5H
Certification	ISO9001:2015 SGS
Lead Time	5-10 working days
Samples	free sample

Thread inserts parameter

Options
Material		304H		321		316		Inconel X750
Standard		DIN-8140				MS-21209
Model	Metric	M3	M4	M5	M6	M8	M10	M12	M16
	British	6-32	8-32	10-32	1/4-20	1/2-13		5/8-11
Length		1d		1.5d			2d
Accuracy		Green	Red	Golden	Blue	Non	Customized

DIMENSION OF DIN8140 WIRE THREAD INSERTS
D	P	L1	d1		D	P	L1	d1
			min	max				min	max
M2	0.4	1d	2.6	2.8	M8	1.25	2d	9.85	10.1
		1.5d					2.5d
		2d			M10	1.5	1d	12.1	12.5
		2.5d					1.5d
M2.5	0.45	1d	3.3	3.5			2d
		1.5d					2.5d
		2d			M12	1.75	1d	14.4	14.8
		2.5d					1.5d
M3	0.5	1d	3.8	4			2d
		1.5d					2.5d
		2d			M16	2	1d	19	19.4
		2.5d					1.5d
M4	0.7	1d	5.15	5.35			2d
		1.5d					2.5d
		2d			M20	2.5	1d	23.7	24.2
		2.5d					1.5d
M5	0.8	1d	6.35	6.6			2d
		1.5d			M24	3	1d	28.6	29.1
		2d					1.5d
		2.5d					2d
M6	1	1d	7.6	7.85	M30	3.5	1d	35.2	35.7
		1.5d					1.5d
		2d					2d
		2.5d			M36	4	1d	42.1	42.6
M8	1.25	1d	9.85	10.1			1.5d
		1.5d					2d

Wire Thread Insert Fastener Manufacturer Custom Size Metric Thread Oil Inserts

Packaging & Delivery

Packaging Details

Packing of metal cnc machined parts
1.Inner-Plastic Bag; Outer -Standard Carton Box.
2. Carton size: 345*255*150mm,gross weight: 30KGS
3.As your requirement

potr Shanghai,Tianjin,Shenzhen,Yantai and so on

Lead Time

Quantity(Pieces)	1 - 10000	>10000
Est. Time(days)	15	To be negotiated

Wire Thread Insert Fastener Manufacturer Custom Size Metric Thread Oil Inserts

Our Services

1.Samples can be offer.

2.High quality can be guaranteed.

3.Good price, better service.

4.Factory located in Xinxiang Henan, Welcome to visit.
