M12 Wire Thread Inserts Stainless Steel For Aluminum Thread Turning Inserts

Product Categories
Xinxiang Flight Fasteners Co., Ltd.
Contact Now

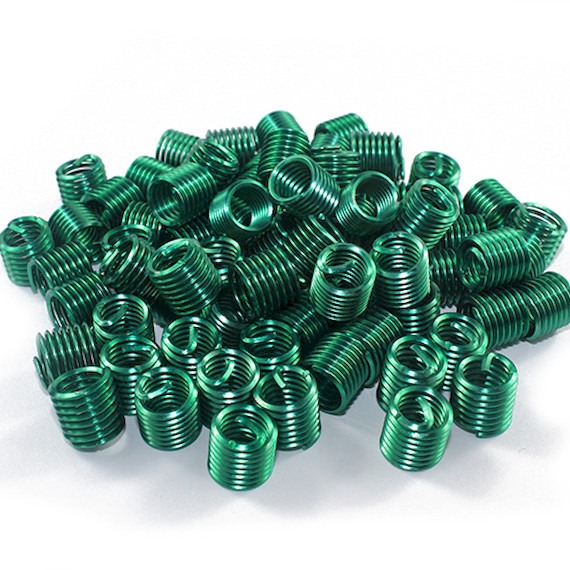

M12 Wire Thread Inserts Stainless Steel For Aluminum Thread Turning Inserts

  • 1
  • 2

Brand Name : AVIC-Flight

Model Number : M12

Certification : ISO9001：2015，ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 50000pcs/day

Delivery Time : 15 days

Packaging Details : 1000pcs/bag

Materials : SUS304

Production time : 7 days

Specifications : ISO9001:2005

Surface treatment : Plain

Product name : Wire Thread Insert

Standard : ISO,GB,DIN,ANSI,BS,JIS

Free Sample : Free samples with freight collect.

Contact Now

M12 Wire Thread Inserts Stainless Steel For Aluminum Thread Turning Inserts



Information

For any thread that has been seriously worn or damaged, it has a maintenance function. The original size screws can be used because of the self-tapping thread insert.

The self-tapping thread insert also has the advantage of protecting the screw tooth, because it has certain anti-shock effect, which can prevent the occurrence of screw loose problem.

Through professional heat treatment the corrosion resistance of self-tapping thread insert is good.

Materials Brass,Stainless Steel,Carbon steel1215,Other materials
Finish Zn/Ni/Tin/Au plating,Black Oxide,Anodizing,Passivated and so on.
Type Wire thread insert/Keylocking threaded insert/Solid threaded insert
Thread Internal thread A:as per ISO6H
Certification ISO9001:2015
Lead Time 5-10 working days
Samples Welcome

Thread inserts parameter

Options
Material 304H 321 316 Inconel X750
Standard DIN-8140 MS-21209
Model Metric M3 M4 M5 M6 M8 M10 M12 M16
British 6-32 8-32 10-32 1/4-20 1/2-13 5/8-11
Length 1d 1.5d 2d
Accuracy Green Red Golden Blue Non Customized


DIMENSION OF DIN8140 WIRE THREAD INSERTS
D P L1 d1 D P L1 d1
min max min max
M2 0.4 1d 2.6 2.8 M8 1.25 2d 9.85 10.1
1.5d 2.5d
2d M10 1.5 1d 12.1 12.5
2.5d 1.5d
M2.5 0.45 1d 3.3 3.5 2d
1.5d 2.5d
2d M12 1.75 1d 14.4 14.8
2.5d 1.5d
M3 0.5 1d 3.8 4 2d
1.5d 2.5d
2d M16 2 1d 19 19.4
2.5d 1.5d
M4 0.7 1d 5.15 5.35 2d
1.5d 2.5d
2d M20 2.5 1d 23.7 24.2
2.5d 1.5d
M5 0.8 1d 6.35 6.6 2d
1.5d M24 3 1d 28.6 29.1
2d 1.5d
2.5d 2d
M6 1 1d 7.6 7.85 M30 3.5 1d 35.2 35.7
1.5d 1.5d
2d 2d
2.5d M36 4 1d 42.1 42.6
M8 1.25 1d 9.85 10.1 1.5d
1.5d 2d

M12 Wire Thread Inserts Stainless Steel For Aluminum Thread Turning Inserts

M12 Wire Thread Inserts Stainless Steel For Aluminum Thread Turning Inserts
M12 Wire Thread Inserts Stainless Steel For Aluminum Thread Turning Inserts


FAQ

1.Place the order

Products confirmation

→Price agreement

→Receipt of payment

→Goods preparation and shipping

→Goods received

→Feedback.

2.Payment terms

TT, credit card, bank transfer

3.For some products,custom-made service is available, more details pls contact me.

4.Usually your goods will be sent out in 3-5 working days after the receipt of payment.
