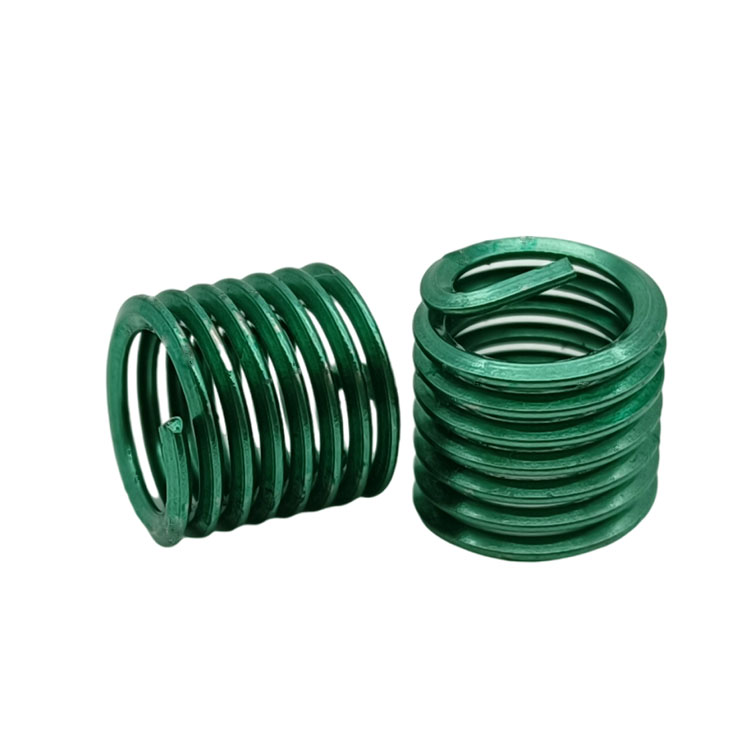

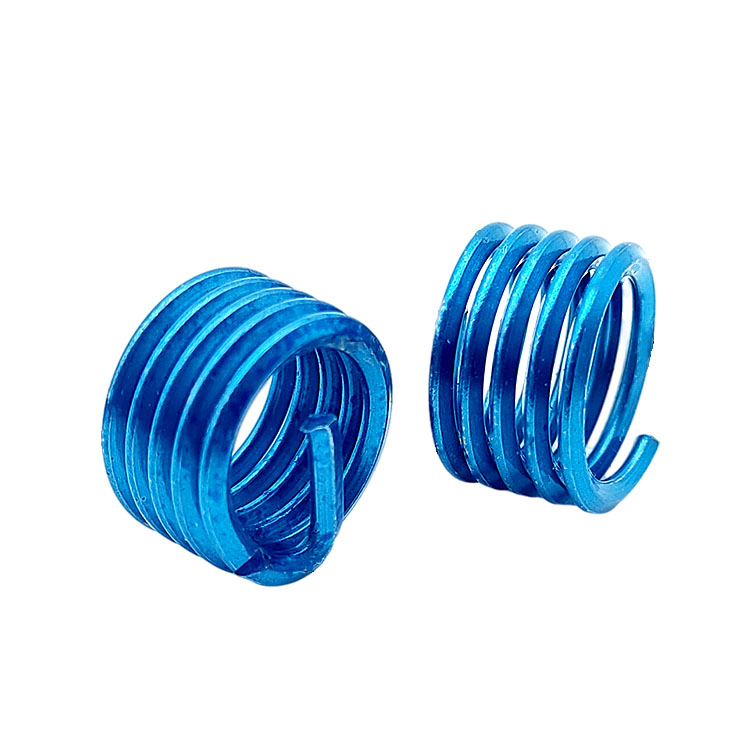

Stainless Steel Coil Thread Insert Assortment With Color Wire Thread Insert
Information
Wire thread insert portfolio of wire threaded inserts includes offerings of a variety of configurations whether it be plating, material, locking, or non-locking variants that make it fully adaptable and configurable for industries spanning automotive, industrial, aerospace, and defense. There is a strong industry trend toward the lightweighting of materials, yet achieving structural integrity of bolted or fastened joints. thread insert by nature of its design is an ideal solution to be incorporated as part of these assemblies.
Material classification
A. Cr-Ni stainless steel material: Through the combination of strength and material, it is used in general, and it is used in mild structure, aluminum alloy structure, seawater, and chlorine-containing liquid to increase corrosion resistance.
B. Copper alloy material: It is used when copper is required or the threaded connection is frequently adjusted; it is used when it needs to be used for electrical conduction or self-lubrication.
Advantage
- Corrosion and temperature resistance
- Easy to identify even after insertion (due to color)
- Different versions for different needs
- Various technical surface treatments available
- high strength
- strong
- One-stop assembly of systems, tools and products
- Available in imperial and metric sizes and special versions
| DIMENSION OF DIN8140 WIRE THREAD INSERTS |
| D | P | L1 | d1 | | D | P | L1 | d1 |
| min | max | min | max |
| M2 | 0.4 | 1d | 2.6 | 2.8 | M8 | 1.25 | 2d | 9.85 | 10.1 |
| 1.5d | 2.5d |
| 2d | M10 | 1.5 | 1d | 12.1 | 12.5 |
| 2.5d | 1.5d |
| M2.5 | 0.45 | 1d | 3.3 | 3.5 | 2d |
| 1.5d | 2.5d |
| 2d | M12 | 1.75 | 1d | 14.4 | 14.8 |
| 2.5d | 1.5d |
| M3 | 0.5 | 1d | 3.8 | 4 | 2d |
| 1.5d | 2.5d |
| 2d | M16 | 2 | 1d | 19 | 19.4 |
| 2.5d | 1.5d |
| M4 | 0.7 | 1d | 5.15 | 5.35 | 2d |
| 1.5d | 2.5d |
| 2d | M20 | 2.5 | 1d | 23.7 | 24.2 |
| 2.5d | 1.5d |
| M5 | 0.8 | 1d | 6.35 | 6.6 | 2d |
| 1.5d | M24 | 3 | 1d | 28.6 | 29.1 |
| 2d | 1.5d |
| 2.5d | 2d |
| M6 | 1 | 1d | 7.6 | 7.85 | M30 | 3.5 | 1d | 35.2 | 35.7 |
| 1.5d | 1.5d |
| 2d | 2d |
| 2.5d | M36 | 4 | 1d | 42.1 | 42.6 |
| M8 | 1.25 | 1d | 9.85 | 10.1 | 1.5d |
| 1.5d | 2d |
Our Services & Strength
1. Have the most professional quotation team and quickly provide you with accurate quotation.
2. At the same price we have better quality, at the same quality we have better prices.
3. Our company will provide a full range of after-sales service. If there are quality problems, We will provide the most accurate and complete solutions to solve problems for our customers in the fastest time.
FAQ
Q: Could you send me your catalogue and price list?
A: As we have more than thousands of products, it is really too hard to send all of catalogue and price list for you. Please inform us the style you interested, we can offer the pricelist for your reference.
Q: How about the quality of your product?
A: 100% inspection during production. Our products are certified to ISO9001, TS16949 international quality standards.
Q: What material of the product can you supply?
A: Carbon Steel, Alloy Steel, Stainless Steel, Brass, Copper or according to your requirement.
Q: What's the delivery time?
A: For products in stock, we can ship it within 7 days after receiving your payment. For custom order, within 24 tons, production time is 20-35 days after confirmed every details.
Q: What's your packing?
A: Our Normal packing is bulking in Cartons, 25kgs/carton, 36cartons/ pallet. We also can pack products according to your requirement.
